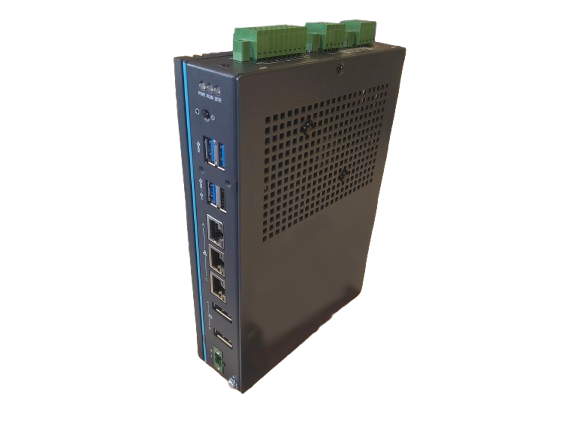

The Ultra brings battery storage, PV inverters, EV charging stations and energy meters together in one local energy system for commercial, industrial and utility sites. It coordinates connected assets and connects the site to external energy platforms.
4 x RS-232/422/485 via terminal blocks; 2,500 VDC galvanic isolation
Digital inputs
8 x DI; dry or wet contact; isolated
Digital outputs
8 x DO; sink type; 5-30 VDC; maximum 500 mA per channel
USB
3 x USB 3.2 Gen 2 and 1 x USB 2.0
Display outputs
2 x DisplayPort
Important
Important
Digital outputs are not relay contacts. The Ultra's sink-type outputs switch their terminal to digital ground. An external 5-30 VDC supply and a load in series are required. Do not exceed 500 mA per channel.
Mount the unit vertically and keep its ventilation openings clear.
Allow at least 50 mm of free space around the unit where possible.
Select cabinet ventilation and SSD cooling to suit the ambient conditions and system load. The operating-temperature rating above requires 0.7 m/s airflow.
Supported device types include EV charging stations, energy meters, battery systems, PV inverters, heat pumps and switched loads. See supported devices for the individual integration guides.
