Wallbox EV Charging Stations

Supported Devices

Connection

The communication between the Sunlight Group EMS and the Wallbox EV Charging Stations is established through API and Modbus TCP. No physical cables are required to the Sunlight Group EMS.

Settings

Pulsar | eM4 | Quasar 2

No additional settings have to be made on the Wallbox side.

Supernova

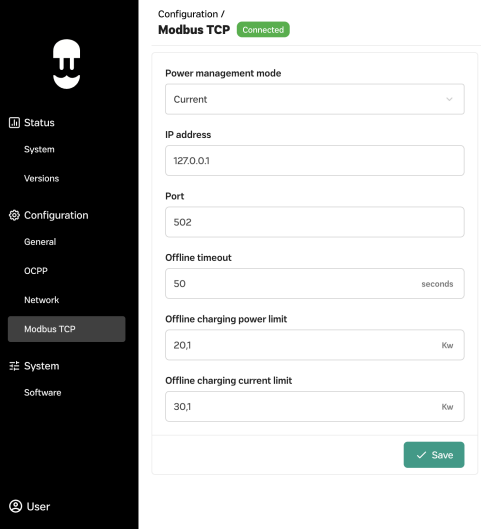

1. Open the WebManager of the Supernova
2. Go to "Configuration" > "Modbus TCP"
3. Set the "Power Management Mode" to "Current"
4. Set a static IP address for the Supernova
5. Set the "Port" to "502"
6. Save the settings
