BatterX

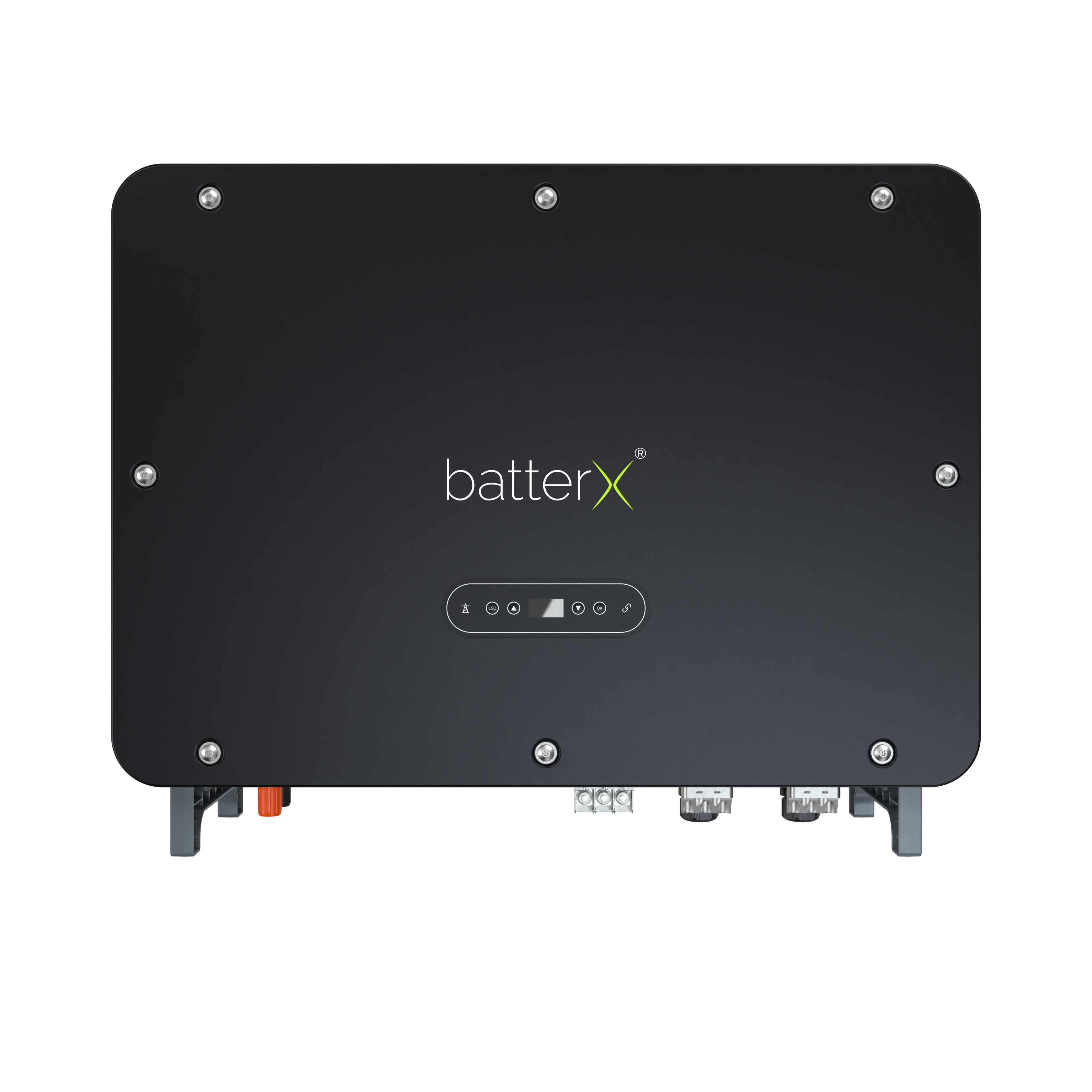

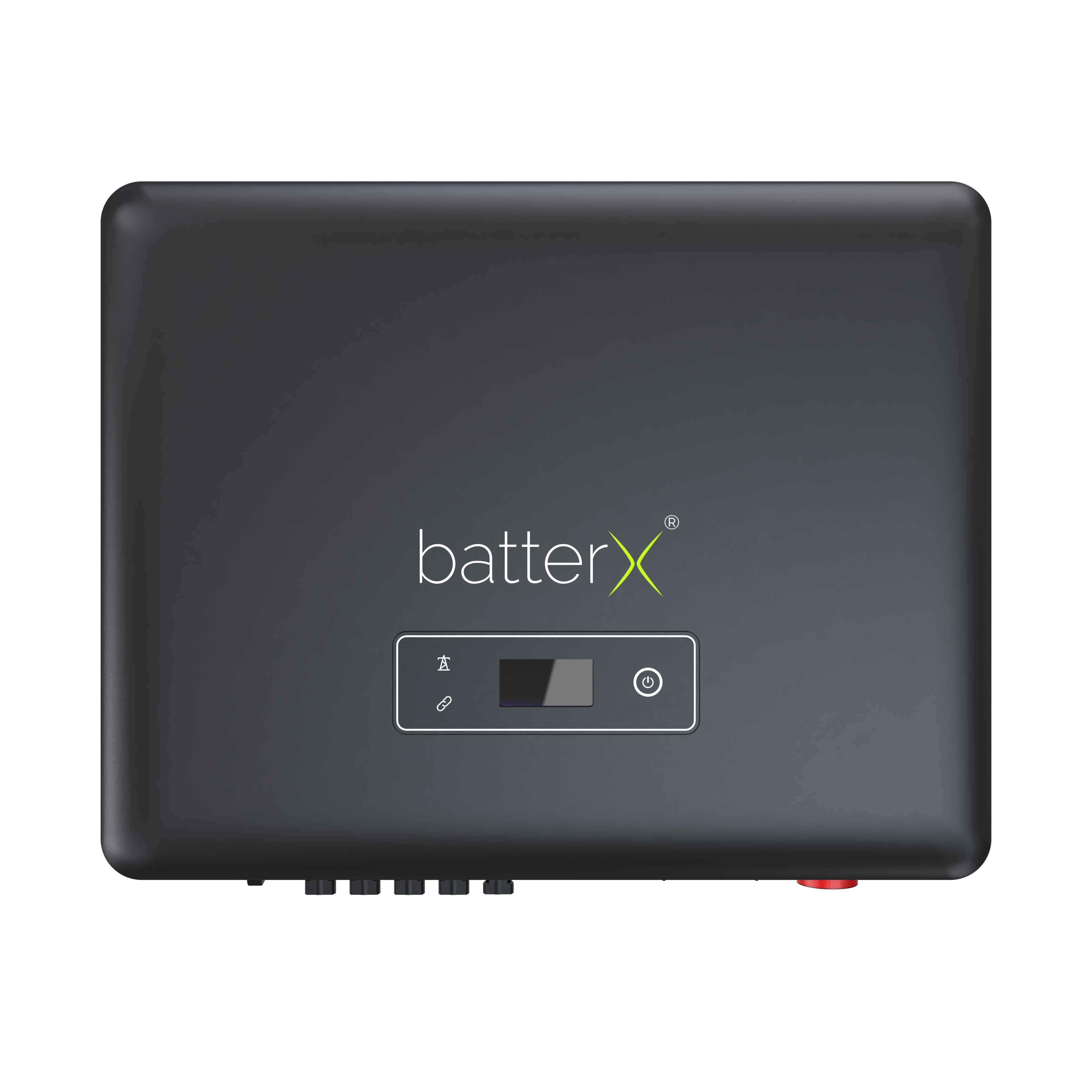

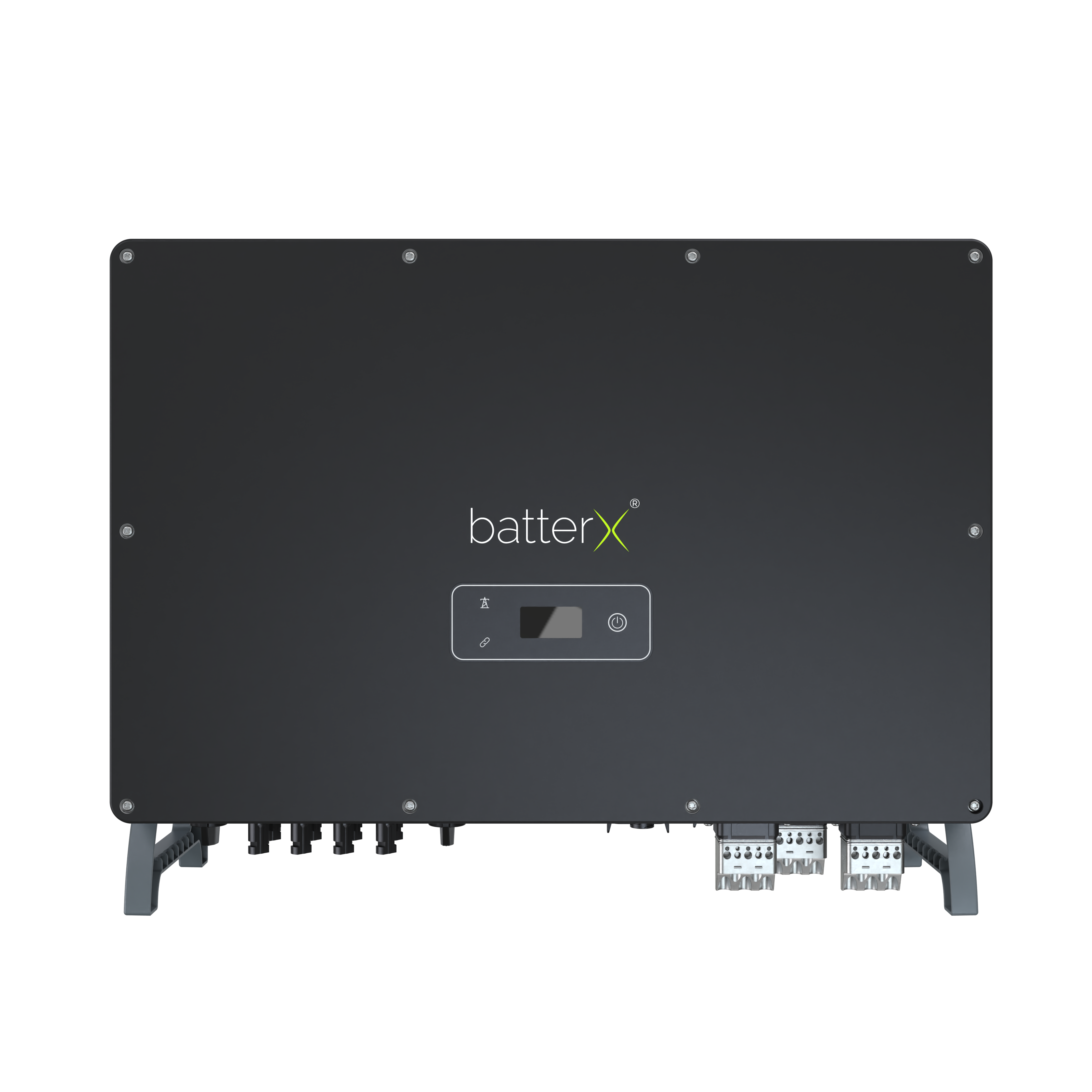

Supported Devices

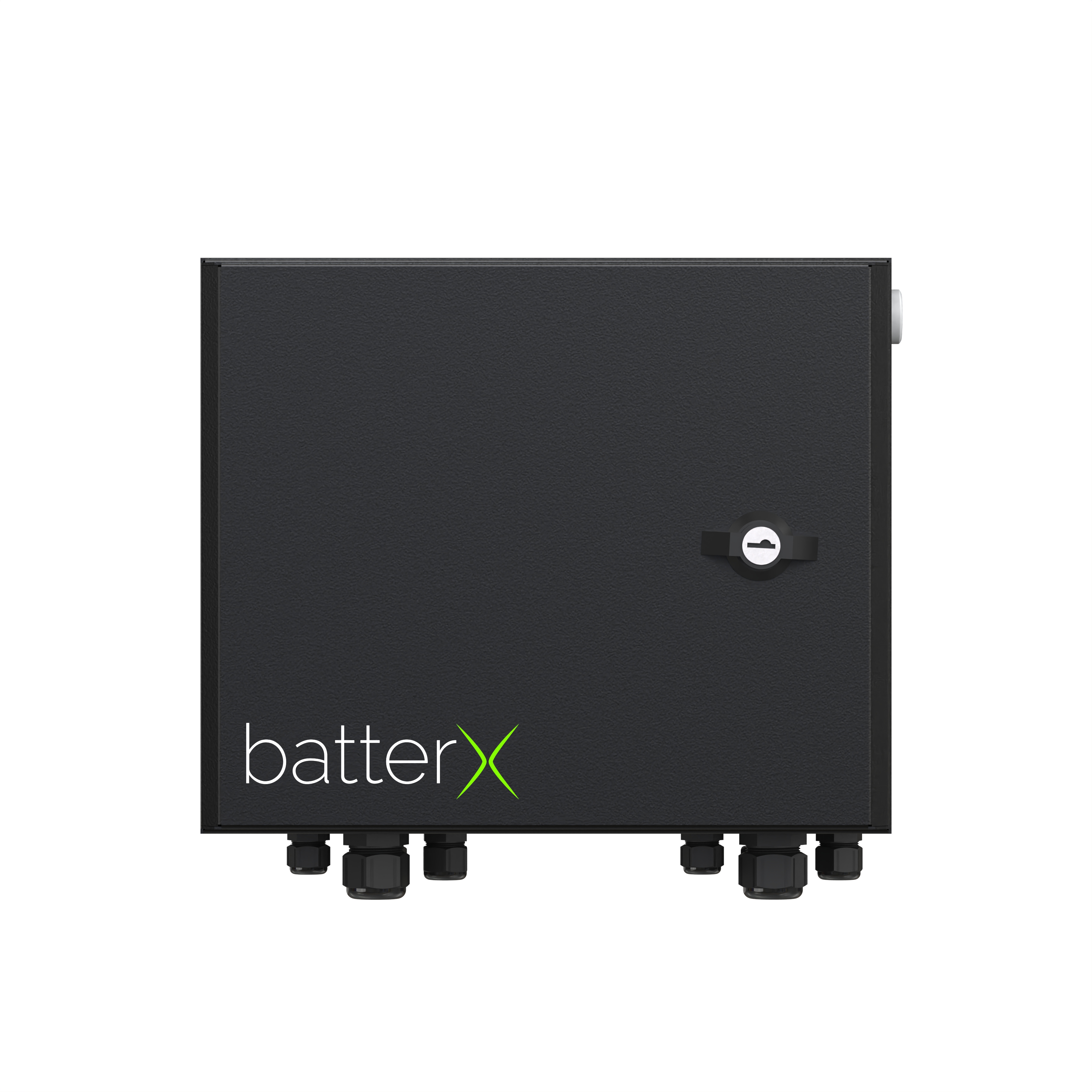

The Sunlight Group EMS communicates with the inverter through the batterX EMX, the batterX EMS box.

Connection

Install the batterX EMX according to the installation manual. You can find the document on the batterX website.

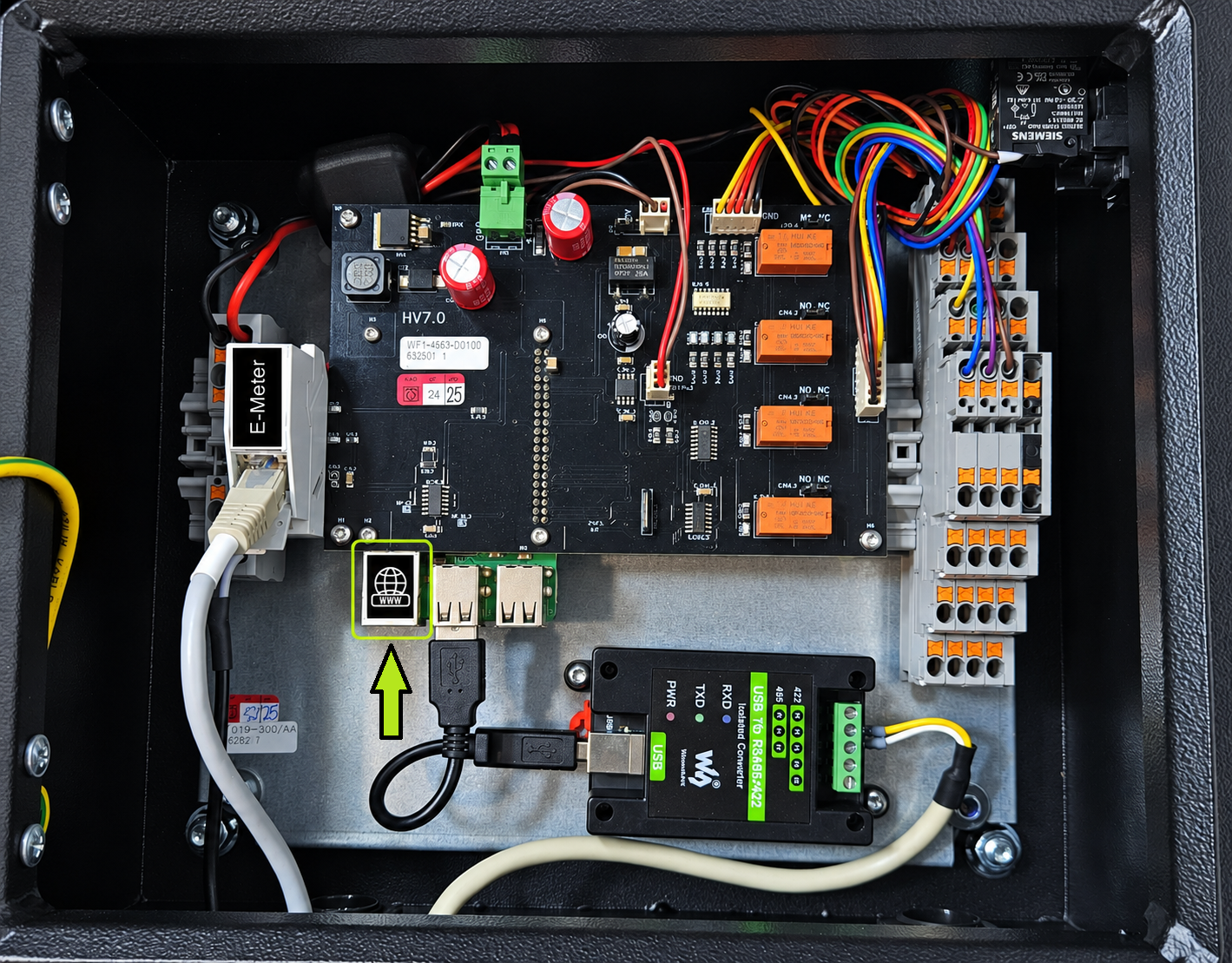

Connect the EMX with an appropriate Ethernet cable at the designated port. For correct Ethernet wiring, follow the guidelines for ethernet wiring.

Configuration

After installing the batterX EMX and running through the automatic installation routine, open the batterX portal to view the system.

Set the Modbus TCP protocol

1. Go to System Settings and scroll down to Other Settings.

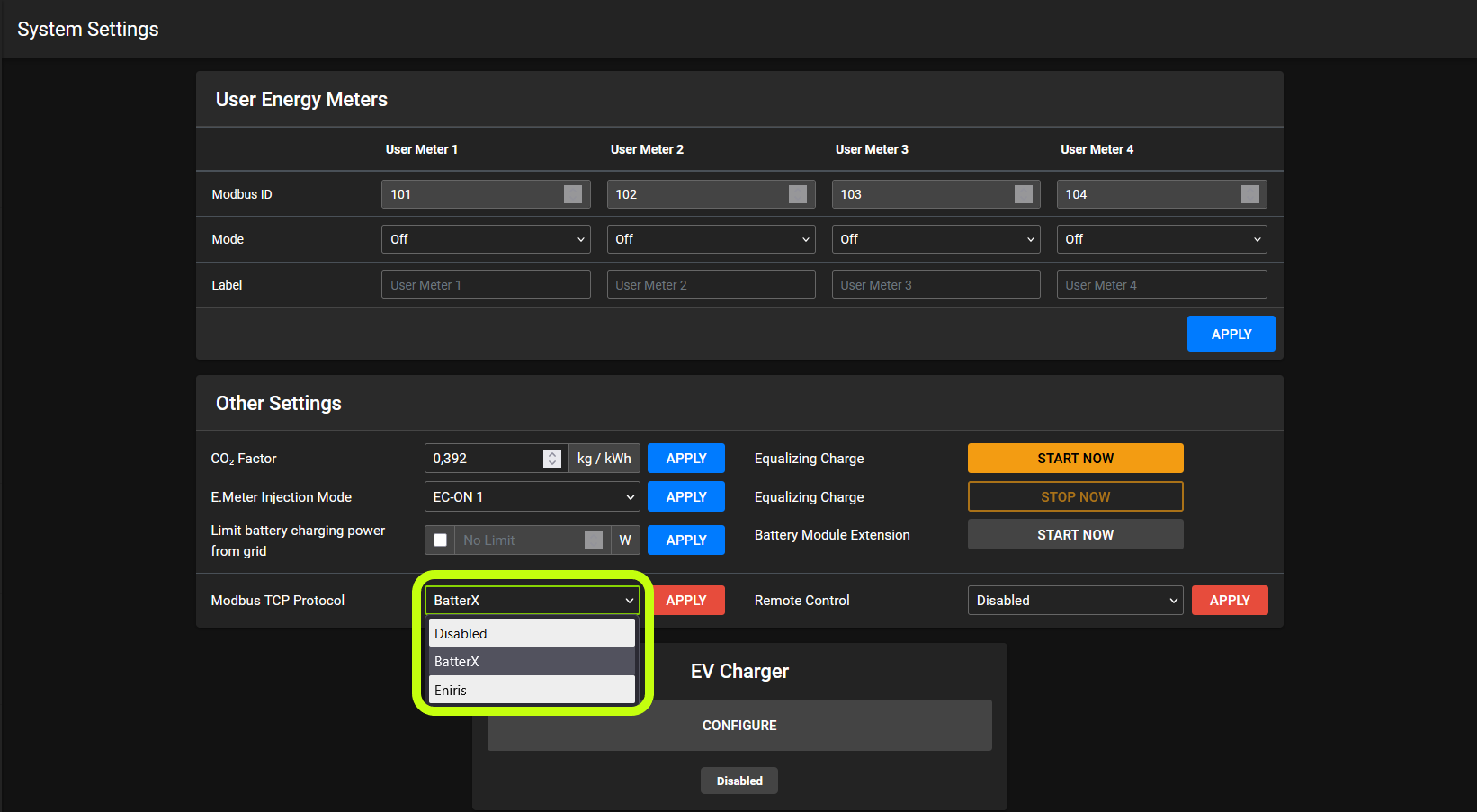

2. Use the drop-down menu next to Modbus TCP Protocol and select Eniris.

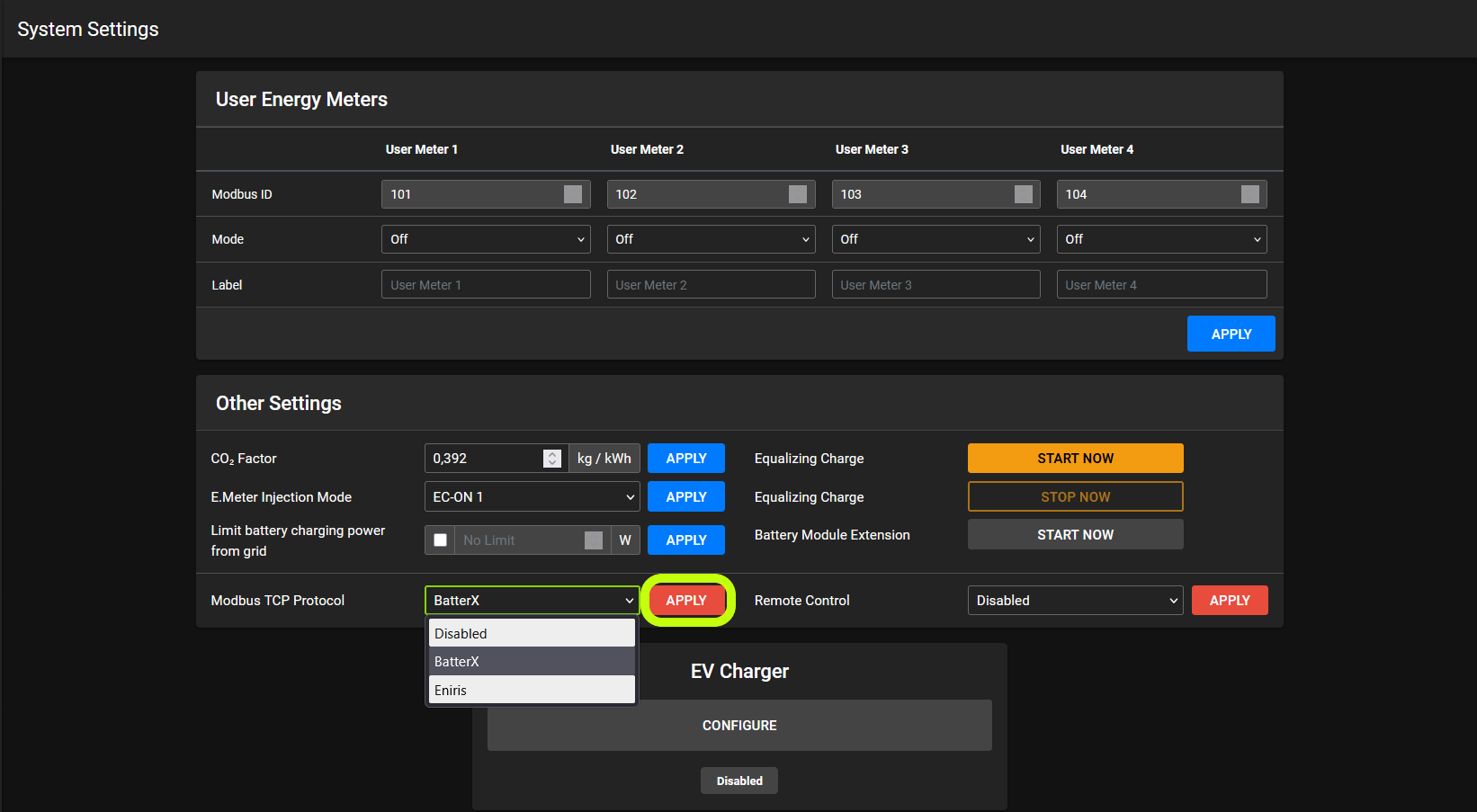

3. Click the Apply button next to it to save this setting.

Enable remote control

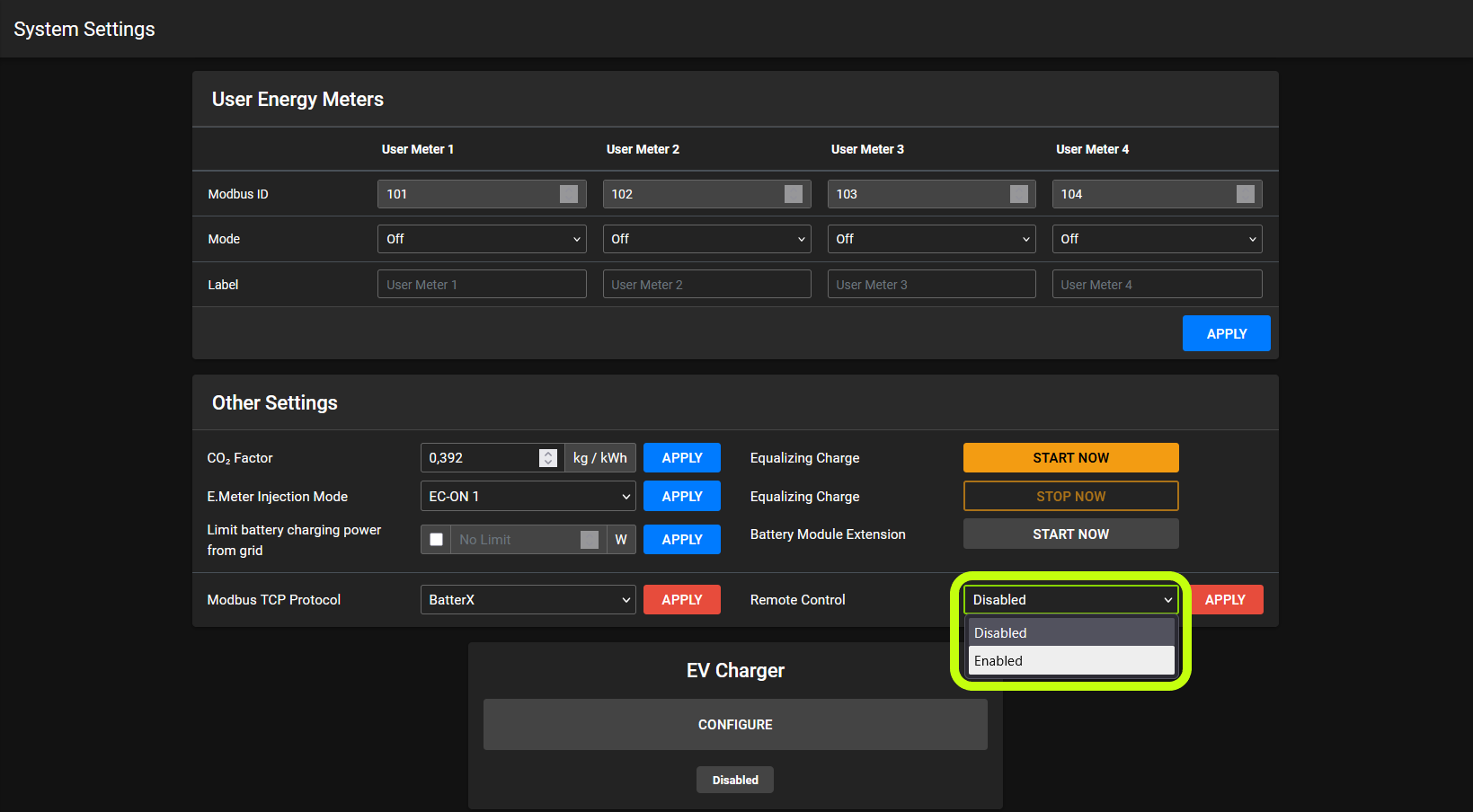

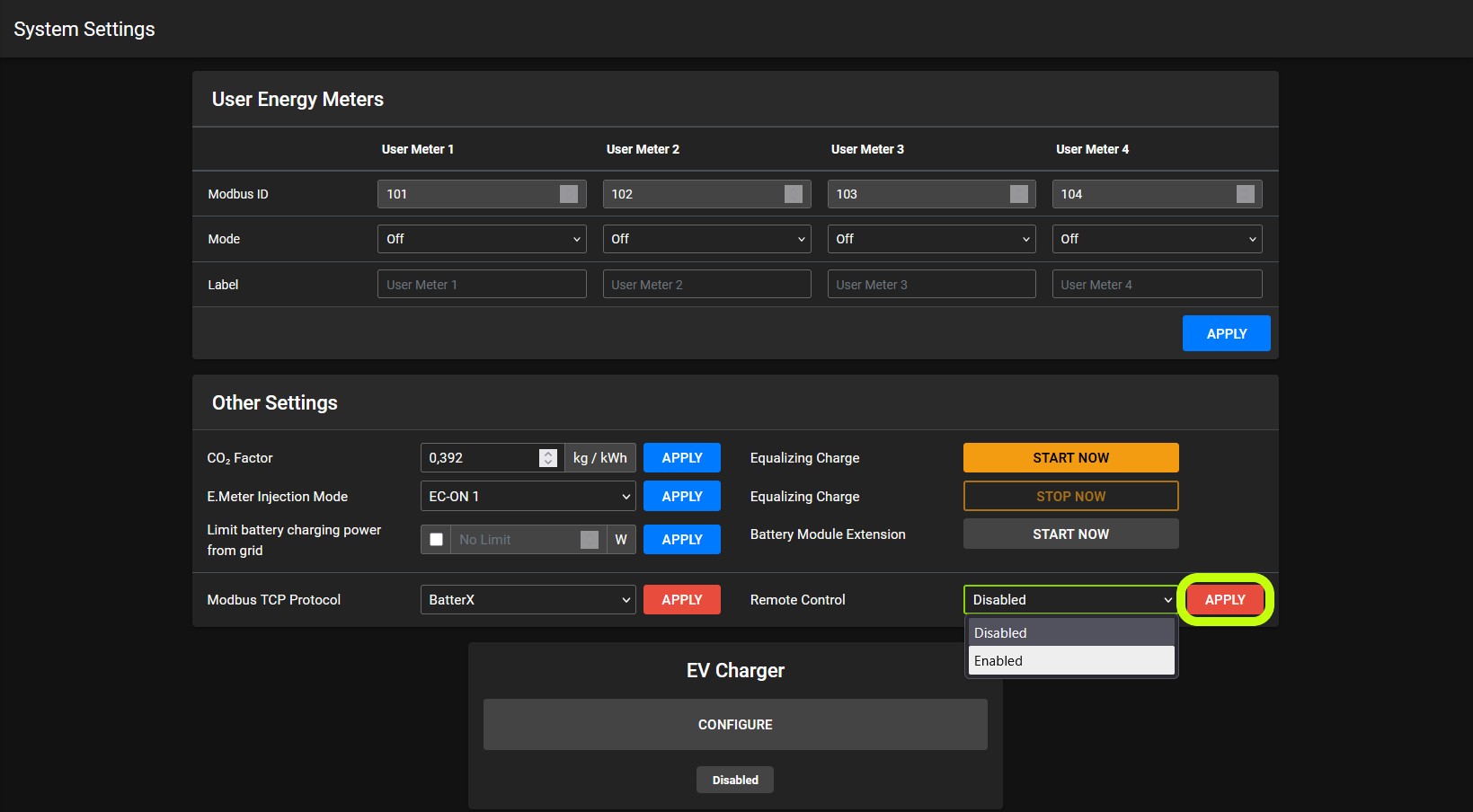

1. Use the drop-down menu next to Remote Control and select Enabled.

2. Click the Apply button next to it to save this setting.

3. Confirm your selection by clicking OK in the pop-up.
