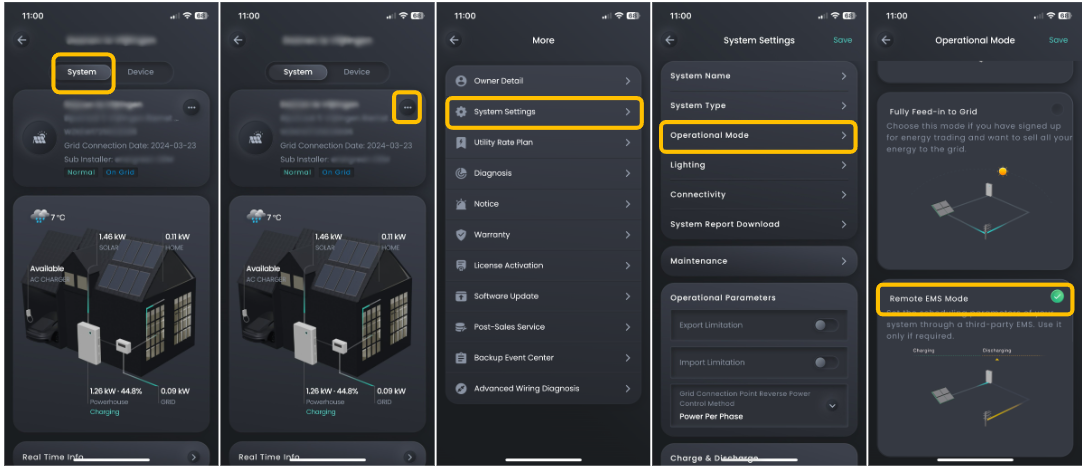

Ensure that the inverter has been set to Remote EMS Mode:
From the main page go to "System"
Click the three dots next to the installation namespace
Click "System Settings"
Click "Operational Mode"
Select "Remote EMS Mode"

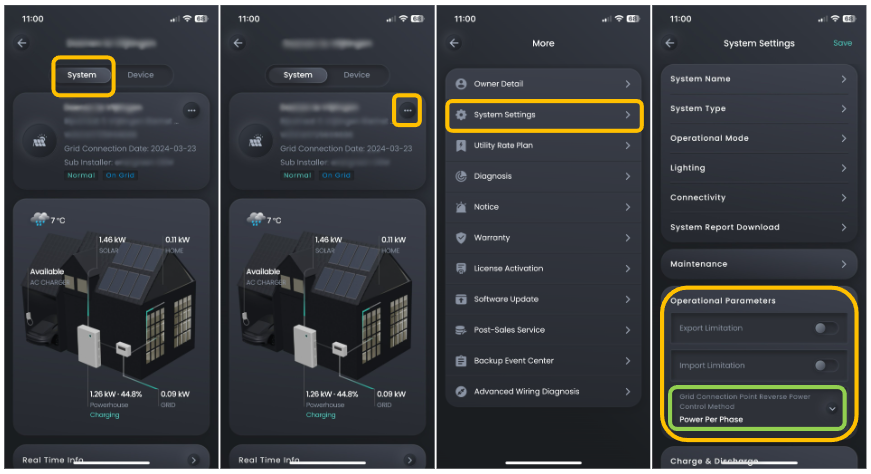

Disable any grid limits:
From the main page go to "System"
Click the three dots next to the installation namespace
Click "System Settings"
Under "Operational Parameters" disable "Export Limitation" and "Import Limitation"
Set "Grid Connection Point Reserve Power Control Method" to "Power Per Phase"
Warning
NOTE: RS485 Device Addresses
You MUST give each devicea unique address on the RS485 bus. Check the device manual for instructions.
Use lower addresses first (1, 2, ...) because the Sunlight GroupEMS will find them faster!
For each device, it is generally recommended to keep the factory-default baud rate, parity, and stop bits. The Sunlight GroupEMS will scan those first.
